Baculovirus DNA Developments

 Our research scientists have more than 30 years of experience on baculovirus expression systems. Recently, Sheatech research group has developed a highly quality version of baculovirus DNA, superBAC DNA. The superBAC DNA is developed and prepared in high quality DNA and confirmed with restriction enzyme digestion analysis, PCR and co-transfection etc.


 The superBAC DNA, is derived from a wild type AcMNPV genome, contains an ORF 1629 partial deletion which prevents non-recombinant virus from replicating in insect cells. In addition, superBAC DNA provides a positive selection for creating baculovirus recombinants in preparation for generating recombinant protein expression in insect cells. The kit improves on the traditional method for generating  recombinant baculoviruses by eliminating the tedious, time-consuming steps of plaque purification.


 SuperBAC is modified and integrated with folding protein genes, including PDI and cdc37, which are regulated by the baculovirus promoter. The folding protein genes remain in the recombinant virus genome after homologous  recombination in sf9 insect cells. Recently, superBAC derivatives, superBAC_PDI and superBAC_cdc37 with single modification, have also been constructed.

Products

.

High Quality of Baculovirus DNA

 The following images were obtained from analysis experiments on Sheatech’s new baculovirus genomic DNA. Baculovirus genomic DNA and  linear baculovirus genomic DNA were loaded onto a TAE agarose gel.  (L1=10 uL of baculovirus genomic DNA; L2= 5 ul of baculovirus genomic  DNA ; L3=2 ul of baculovirus genomic DNA ; L4=10 uL of linear  baculovirus genomic DNA; L5=5 uL of linear baculovirus genomic DNA ;  L6=2 uL of linear baculovirus genomic DNA; L7=DNA markers.) The result  shows high quality virus DNA, which was prepared by our scientists in Sheatech.

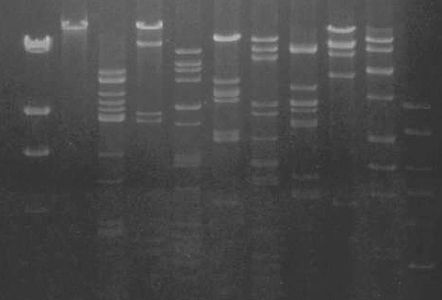

Baculovirus DNA RE mapping

 Restriction enzyme digested baculovirus DNA

separated in 0.6% TAE agarose gel.

Baculovirus DNA

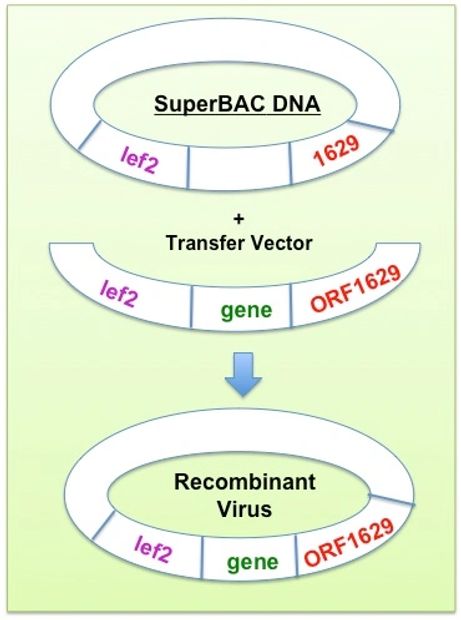

Homologous recombination

The advantages of superBAC baculovirus DNA

High quality DNA for co-transfection.

No background: 100% recombinant virus.

High virus titer: Direct infection for protein expression.

Protein Expression Projects
